2005-2010 Ford F250 F350 Super Duty 4x4 4WD Front Wheel Hub Ball Bearing Kit OEM

Wheel Bearings

4x4 / 4WD Front Wheel Hub Ball Bearing Service Kit
Direct Factory Replacement For:

2005-2010 Ford F-250 F-350 F-450 F-550 Super Duty
-Fits All 05-10 Super Duty Trucks With 4x4
*Service The Ball Bearing In The Front Hub Bearing* *Please Refer To Compatibility Above & Below For Proper Fitment*
*If VIN# Is Supplied Before Ordering, We Will Confirm Fitment*

N/A

Upper Ball Joint

Ball Joints

E250 & 350. E150-350 vans. Upper. F250 super duty. F350 super duty. Without 4wd, monobeam axle. Explorer. 2wd. From 9/16/08. Awd.

N/A

Hub & Bearing

Front Hub

4wd, f250, f350, with single rear wheel. 4wd, single rear wheel with 2 wheel abs, from 3/15/99. F250 super duty. F350 super duty. Single rear wheels. F250 pick-up.

N/A

N/A

N/A

N/A

OEM NEW 2008-2019 Ford F250 F350 Front Suspension Lower Ball Joint BC3Z-3050-C

Ball Joints

(1) Front Suspension Track Bar Lower Ball Joint
Direct Factory Replacement For:

2005-2016 Ford F-250 F-350 F-450 F-550 Super Duty
-Front Suspension Lower Ball Joint
-Designed For Vehicles With 4x4 (4WD) Only *Please Refer To Compatibility Above & Below For Proper Fitment*
*If VIN# Is Supplied Before Ordering, We Will Confirm Fitment*

N/A

OEM NEW 05-16 Ford F250 F350 F450 Super Duty Manual Locking Hub Front BC3Z3B396B

Locking Hub

(1) Front Manual Locking Hub
Direct Factory Replacement For:

2005-2016 Ford F-250 F-350 F-450 F-550 Super Duty
-Designed For Super Duty's With Manual Locking Front Hubs!
-Rubber O-Ring & Paper Gasket Included
-Includes ONE (1) Manual Locking Front Hub *Please Refer To Compatibility Above & Below For Proper Fitment*
*If VIN# Is Supplied Before Ordering, We Will Confirm Fitment*

1

Spindle

Knuckle

From 7/30/07. 4wd. F250, f350 super duty. Left. 2wd, monobeam axle. To 7/30/07. F250 pick-up.

1

Spindle

Knuckle

Right. 4wd. 2wd, monobeam axle. F350. F250 pick-up.

2

2

Radius Arm

2wd, monobeam axle. 4wd. F350 super duty. F250 super duty. Right. To 10/20/08. From 10/20/08.

3

4

Coil Spring

F250 super duty. Code a (7000 lb). Spring code a. F350. 2wd, twin i beam. Without 4wd, twin i beam, code a. Code-5c34-5310-amd. F250 pick-up.

4

Coil Spring

Suspension Code:B. F250, f350, f450, f550. Spring code b. F250 super duty. Code b (6500 lb). F350 super duty. Without 4wd, monobeam axle, code b. Code-5c34-5310-ald. F250 pick-up.

4

Coil Spring

2wd, monobeam axle, code c. Suspension Code:C. F250, f350, f450, f550. Spring code c. With 4wd, code c. F250 super duty. Code c (6000 lb). F350 super duty. Code-f81a-5310-ahd. F250 pick-up.

4

Coil Spring

Suspension Code:D. F250, f350, f450, f550. Spring code d. Without 4wd, code d. F250 super duty. Code d (5600 lb). F350 super duty. Code-f81a-5310-agd. F250 pick-up.

4

Coil Spring

Without 4wd, code t. 4wd, 2005-07, f250,f350. F250 super duty. Code t (5200 lb). F350 super duty. F250, f350, f450, f550. Spring code t. 2wd, twin i beam. Code-f81a-5310-afd. F250 pick-up.

4

Coil Spring

F250, f350, f450, f550. F81z-aed. F250 super duty. F350 super duty. 2wd, twin i beam. Code-f81a-5310-aed. F250 pick-up. Code v.

4

5

6

Stabilizer Bar

F250 super duty. F350 super duty. Single rear wheels. 4wd, single rear wheel.

7

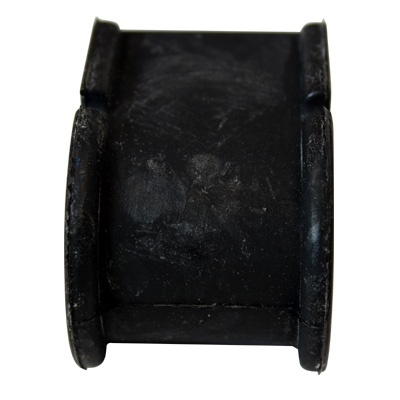

2008-2016 Ford F250 F350 Super Duty Front Stabilizer Sway Bar Rubber Bushing OEM

Bushings

(1) Front Suspension, Stabilizer Sway Bar Rubber Bushing
Direct Factory Replacement For:

2008-2016 Ford F-250 F-350 F-450 F-550 Super Duty
-Designed For Models With 4WD & Single Rear Wheels
-Includes ONE (1) Bushing, Designed To Fit Either Right Or Left Sides *Please Refer To Compatibility Above & Below For Proper Fitment*
*If VIN# Is Supplied Before Ordering, We Will Confirm Fitment*

8
